How to Measure Your Space for Cabinets

Your dream kitchen (or any space) begins with the right measurements. Learn how to measure your walls, openings, and key features so Cabinet Joint can bring your vision to life.

Before we can get you a quote or design, we’ll need a simple sketch of your space. It doesn’t need to be perfect—just clear enough for us to understand your layout.

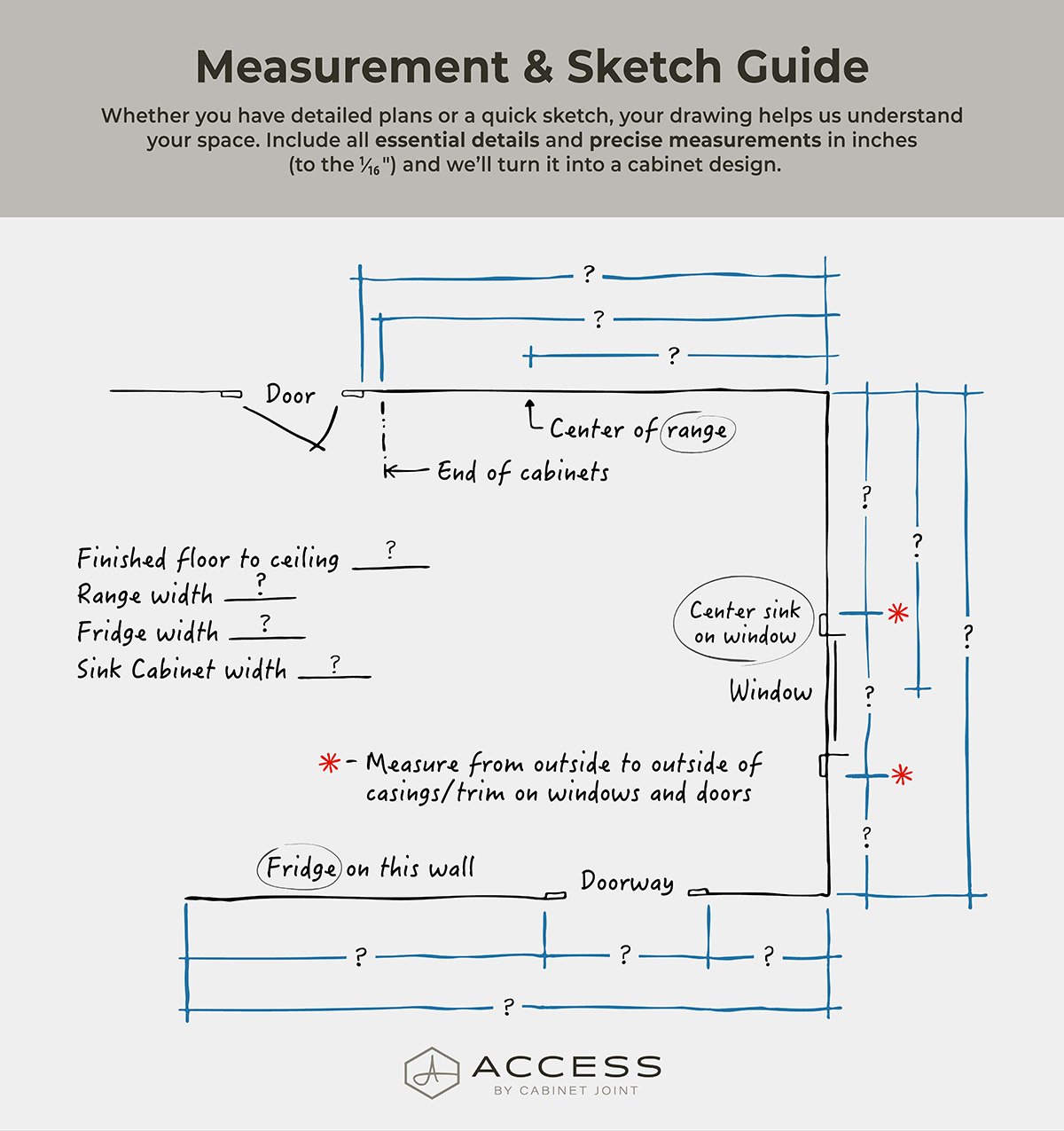

Measurement & Sketch Guide example

Step 1: Sketch Your Space

  • Draw all walls where new cabinets will go — straight lines are fine.
  • Include any permanent features like beams, soffits, or pipe chases.

Step 2: Mark Openings and Obstacles

  • Add all doors, windows, and pass-throughs.
  • Label and measure each opening, including the distance from the nearest corner.
  • Note anything that affects cabinet placement (vents, outlets, radiators, access panels, etc.).

Step 3: Measure Everything

  • Record the total length of each wall.
  • Measure the width and height of every opening (to the outside of trim).
  • Note ceiling height (finished).
  • Note floor-to-window-sill and window-to-ceiling heights.
  • Mark any uneven floors, beams, or bulkheads.

Step 4: Mark Appliance and Sink Locations

  • Draw and label major appliances (sink, range, refrigerator, dishwasher, etc.).
  • Mark the centerline of your sink and range.
  • Include plumbing, gas, or electrical connections if known.

Step 5: Take Photos (Optional)

  • Photograph the entire room from multiple angles.
  • Include close-ups of any tricky areas or obstructions.
  • If it’s new construction or demoed, show the rough layout and connections.

Step 6: Share Extras (Optional)

  • Send appliance specs, blueprints, or inspiration photos if available.
  • The more info we have, the more accurate your design and quote will be!
